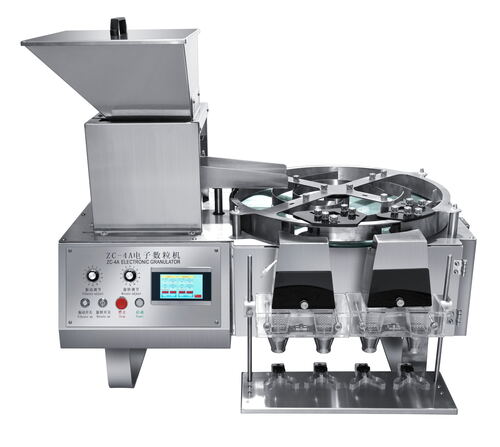

Electronic Tablet Counting Machine

Name: Electronic Tablet Counting Machine
Brand: WENZHOU TRUSTAR MACHINERY TECHNOLOGY CO., LTD.
Price: 2200 USD
Availability: InStock

Price 2200 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electronic Tablet Counting Machine Specification

Phase
Single Phase

Usage & Applications
Pharmaceutical Tableting, Capsule Counting & Bottling Lines

Frequency
50/60 Hz

Temperature
5-40C Operating Range

Features
Automatic Counting, Dust Extraction, Easy Operation, High Accuracy, Digital Display

Noise Level
70 dB

Type
Electronic Tablet Counting Machine

Material
Stainless Steel

Capacity
Up to 6000 tablets/min (varies with tablet size)

Computerized
Yes

Control Mode
Touchscreen & Button Control

Voltage
220V/110V

Power
0.5 kW

Weight (kg)
Approximately 110 kg

Dimension (L*W*H)
1100mm x 750mm x 1400mm

Color
Silver

Control System
PLC Controlled with Parameter Memory

Compliance
GMP Standards

Reject Station
Integrated for District Tablets

Bottle Diameter Range
25mm to 100mm

Power Consumption
Low Power Consumption

Cleaning Method
Tool-Free Disassembly for Fast Cleaning

Display Type
LCD digital panel

Tablet Size Range
3mm to 22mm

Hopper Capacity
20 Liters

Alarm System
Audio & Visual Alarms for Jam/Error

Counting Accuracy
99.8%

Protection Class
IP54

Conveyor Speed Adjustment
Available

Electronic Tablet Counting Machine About

Main Technical Parameter

Model ZC2A

Dimension 90x66x76cm

Power 150W

Voltage 110V220V 5060Hz

Net weight 65Kg

Capacity 1000 1800piecesmin

Function

This machine adopts high dust computer counting technology which can count and pack tablets including specialshaped tablets hard capsules soft capsules transparent and opaque in various shapes pills and other solid particles with a size range of 225 It can be bottled boxed and bagged which fully complies with GMP requirements and is particularly suitable for research institutions hospitals newly established small pharmaceutical factories and health care product factories

Packing Range

Suitable for round and square bottles with a diameter of 2575mm and a height of 240mm and various bags and boxes for counting and packing

Advanced Accuracy and Reliability

Engineered to deliver a precise count with an accuracy of 99.8%, this tablet counting machine is suitable for pharmaceutical tableting and bottling lines. Its high hopper capacity, integrated reject station, and adjustable conveyor speed contribute to consistent performance even under demanding conditions. The combination of a digital LCD display and PLC control ensures streamlined operation and fast parameter recall.

Intuitive Cleaning and Maintenance

Routine maintenance is exceptionally convenient with this machine thanks to its tool-free disassembly design. Whether it's daily cleaning or quick changeovers between products, operators can access internal components without special tools, reducing downtime and ensuring compliance with stringent GMP standards. Its stainless steel build also supports hygienic and durable operation.

Benefits for Modern Production Lines

With features like audio-visual alarms, dust extraction, and touch/button control modes, this machine addresses the needs of today's pharmaceutical manufacturers. It operates quietly at just 70 dB and is energy-efficient, drawing only 0.5 kW. Suitable for tablet or capsule counting at up to 6000 tablets per minute, the machine optimizes productivity, quality, and staff safety in every batch.

FAQ's of Electronic Tablet Counting Machine:

Q: How does the Electronic Tablet Counting Machine ensure high accuracy during counting?

A: The machine uses advanced electronic sensors and PLC control to achieve an impressive 99.8% counting accuracy. It also includes an integrated reject station that automatically removes any tablets or capsules that do not meet preset criteria, ensuring only correctly counted bottles are delivered for packaging.

Q: What types and sizes of tablets or capsules can this machine handle?

A: This tablet counting machine is compatible with a wide range of tablet and capsule shapes and sizes, specifically sizes between 3mm and 22mm in diameter. The machine's bottle handling system can accommodate bottles ranging from 25mm to 100mm in diameter.

Q: When should the machine be cleaned, and how is the cleaning process carried out?

A: Cleaning should be performed regularly, especially between product changeovers or as part of daily maintenance. The machine features a tool-free disassembly design, allowing operators to quickly and safely remove components for cleaning without specialized tools, promoting efficient workflows and GMP compliance.

Q: Where is the best environment to install and operate this counting machine?

A: For optimal performance and longevity, install the machine in a controlled environment with temperatures between 5C and 40C. Its IP54 protection class makes it suitable for standard pharmaceutical production areas, offering resistance against dust and water splashes.

Q: What is the process for adjusting the conveyor speed and other parameters?

A: Operators can easily adjust conveyor speed and other key parameters using the intuitive digital LCD panel and touchscreen/button controls. The PLC control system features parameter memory, enabling quick retrieval and setup for different products or production runs.

Q: How does this machine benefit pharmaceutical manufacturers?

A: Manufacturers benefit from the machine's high efficiency (up to 6000 tablets per minute), low energy consumption, precise counting accuracy, fast cleaning, and user-friendly interface. These features streamline production, reduce errors, protect product quality, and enhance compliance with industry standards.
