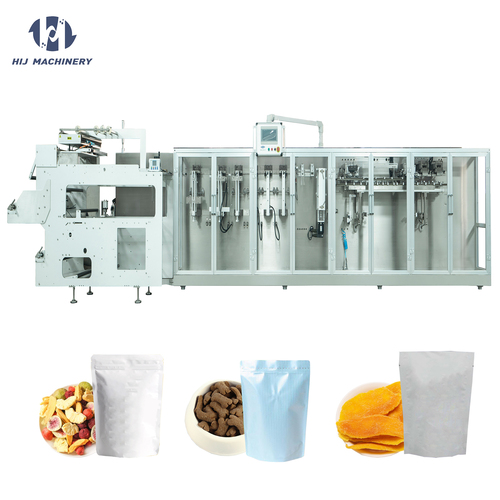

HMK horizontal doypack pouch packaging machine adopts the current international popular servo-driven. FE product uses servo motor as drive unit. Choose different configuration modules for the production of large and medium-sized flat bags and doypack,stand up pouch, zipper bags and other bags.
HMK doypack series can produce up to 3000ml bags.
Suitable for pet food, seasoning food, dried fruit, candy, oatmeal and so on.
1.Automatic lubrication system for equipment.
2.Automatic bottom punching servo positioning system for doypack.
3.An independent membrane-release system is adopted.
4.The Standard Model uses a Siemens system with a standard 10-inch Operation Panel.
5.The machine can be equipped with up to four filling station, according to the need for a single or multiple filling.
6. You can choose to work in single or multiple pouches. When multiple pouches are selected, two to four pouches can be generated at the same time for each machine running cycle.
Type of machine: HMK320FE
Minimum bag size(mm): 80x120x20
Maximum bag size(mm): 320x300x60
Bag volume range: 3000ml
Film size range: Maximum diameter 400mm, core diameter 76mm or 152mm
Production speed: 40PPM
Power consumption: 28KW
